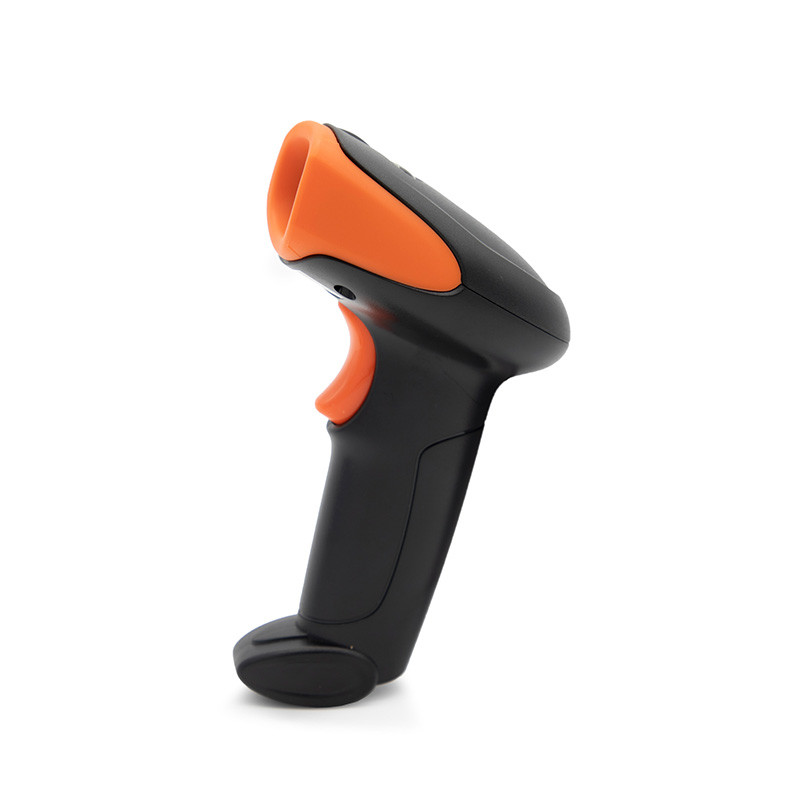

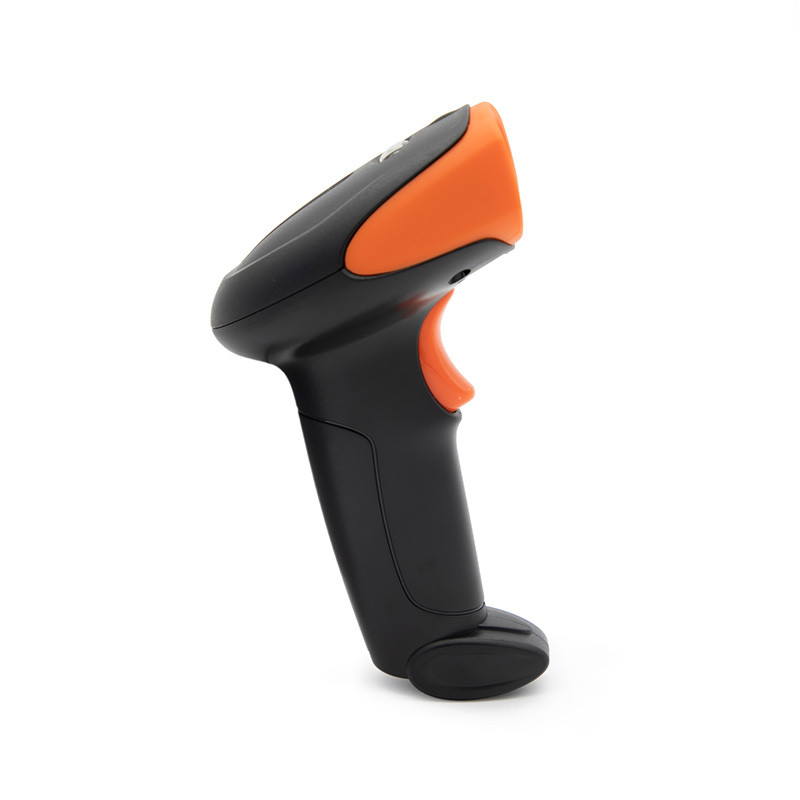

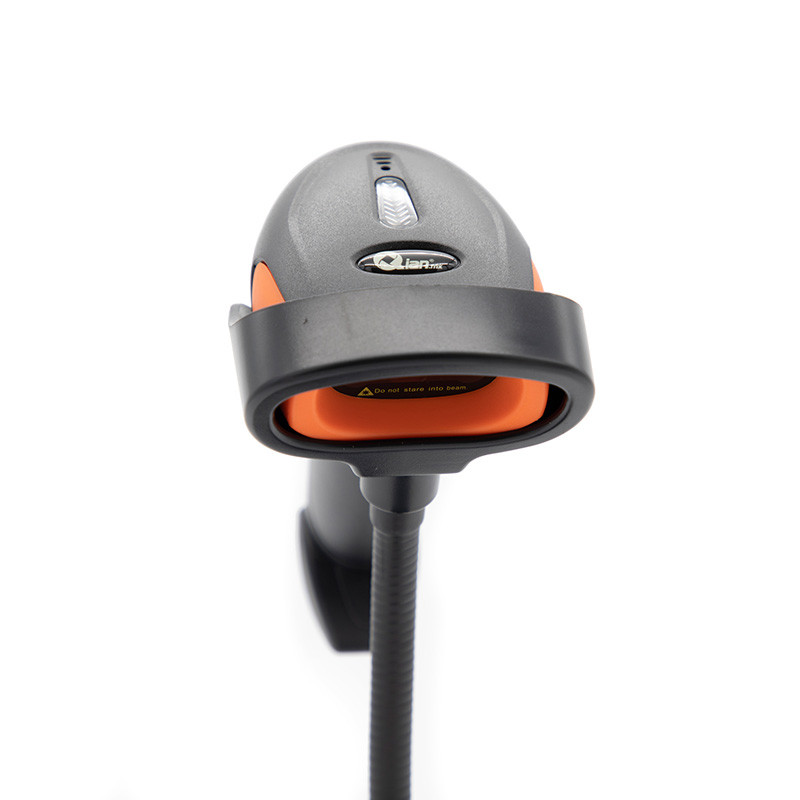

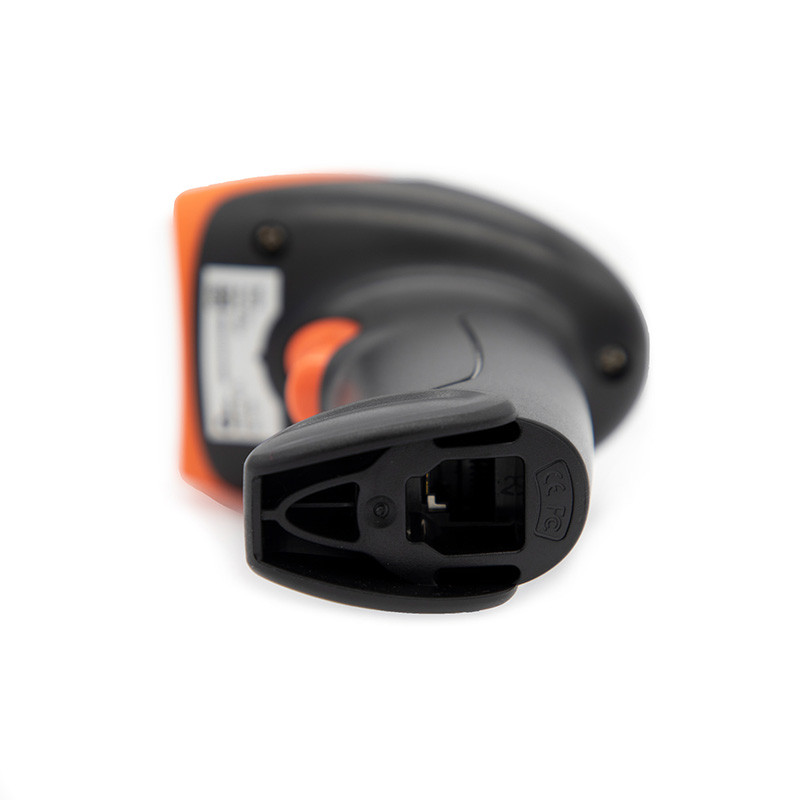

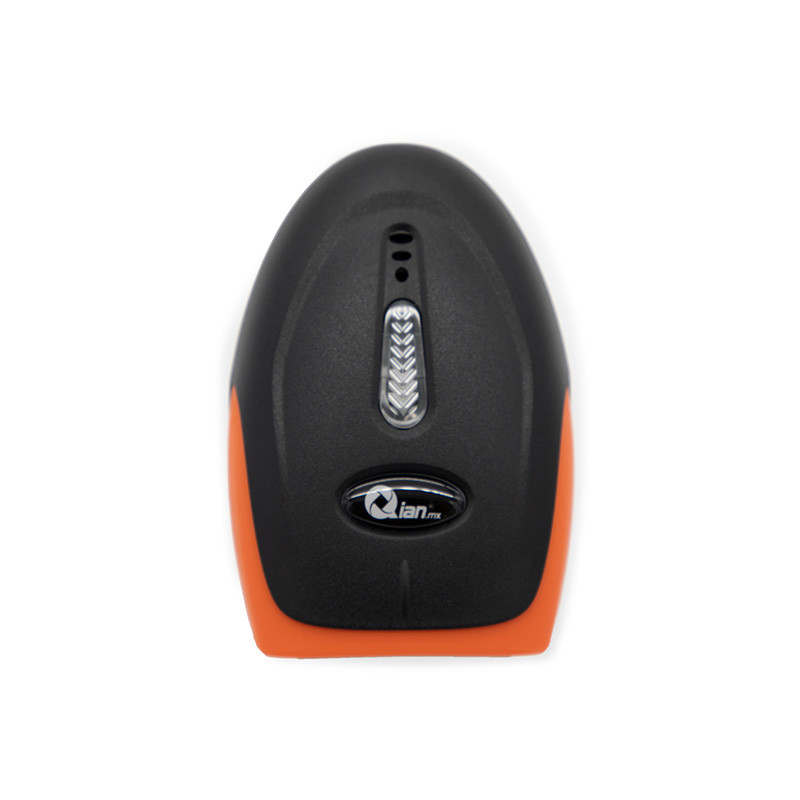

With the Tiaoma QLLA1701 a whole world of 1D barcode scanning possibilities opens up for you. Simply set-it up for wireless use and start scanning away at ultra-fast scan speeds and the possibility to set it up in different, faster scanning modes without the need to pull the trigger every time, as well as many other features that will be sure to make your work life easier. Scanning has never been this easy before!
The Qian Tiaoma QLLA1701 Barcode Scanner is completely compatible with a multitude of 1D Barcodes, including UPC / EAN, Code 128, among others.
Activate its continuous scan mode for simple, easy to use hands-free auto-scanning that won't require any trigger presses or follow the included instructions to set up hands-free scanning operation.
No need to install any software or app, simply plug and use away. Its wireless range goes up to 196ft in wide, unobstructed spaces.

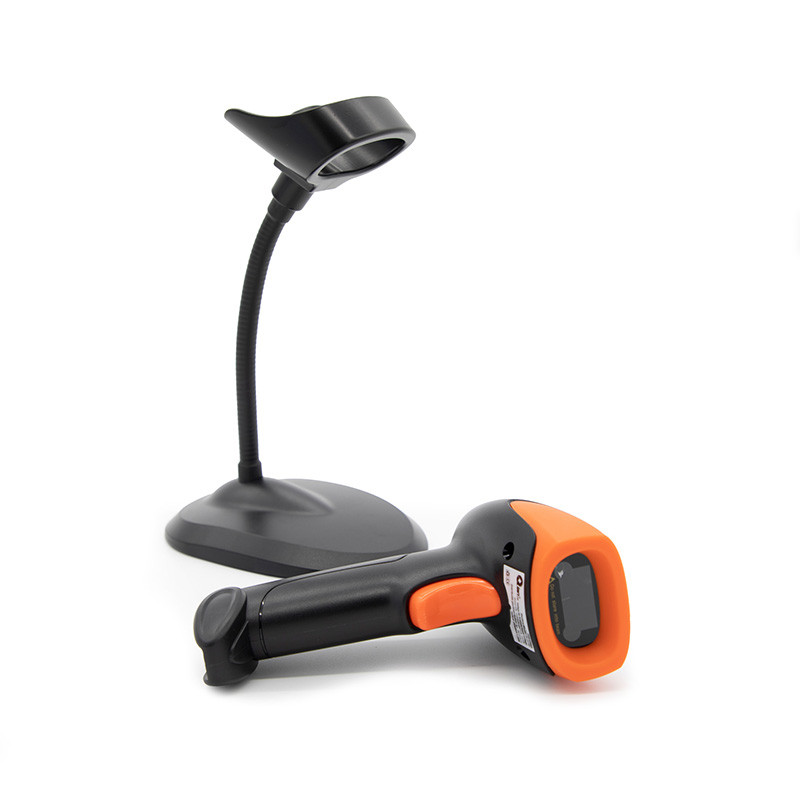

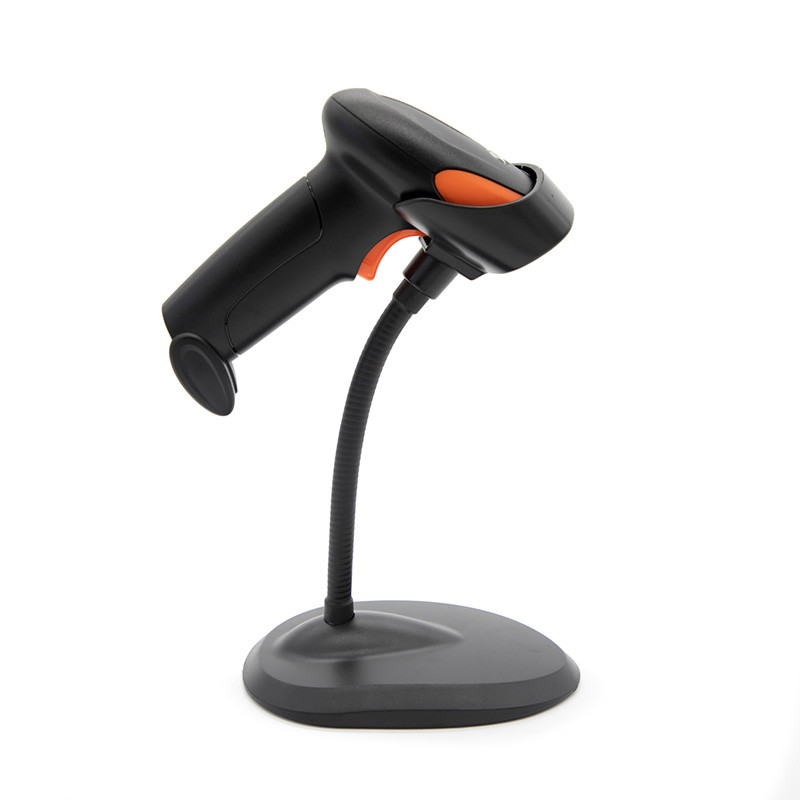

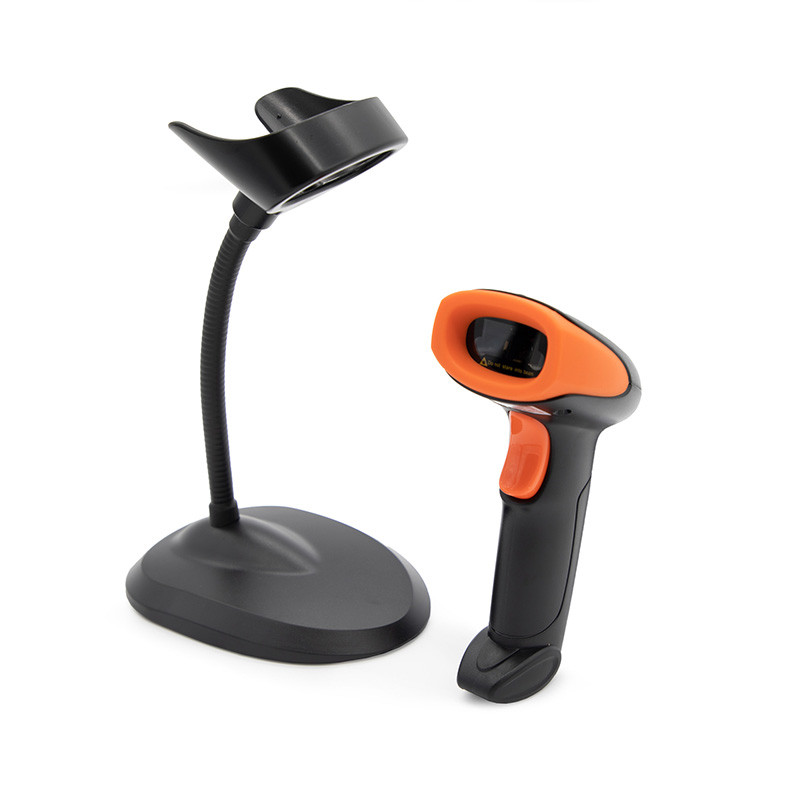

Includes a stand to hold the scanner while not in use.
| INTERFACE | USB HID KEYBOARD / USB VCP |
| VOLTAGE REQUIREMENT | DC 5V ± 10% |
| CURRENT CONSUMPTION | Max: 120mA |
| LIGHT SOURCE | 650nm Visible laser diode |
| SCAN RATE | 100 ± 20 (scans/second) |
| DECODE ANGLE | Pitch angle ± 35°; Skew angle ± 75°; Tilt angle ± 40° |
| MIN RESOLUTION | SR: 0.127mm/5mil(PCS 0.9) |
| MIN PCS VALUE | >25%UPC/EAN 13(13mil) |
| MECHANICAL SHOCK | 1.5m drop onto concrete surface |
| TEMPERATURE | -20° to 65° C / -4° to 149° F (operation) -30° to 70° C / -22° to 158° F (storage) |
| RELATIVE HUMIDITY | 5 - 90% (operation), 5 - 90% (storage) |
| AMBIENT LIGHT | up to 80,000 lx |
| DECODE CAPABILITY | 1D: EAN13, EAN8, UPC A, UPC E,BARCODE (NW-7), CODE 39, CODE 93,INTERLEAVED 2OF5, STANDARD 2OF5, MATRIX 2OF5, CODE 128, EAN / UCC 128, CODE 11, CHINESE POST |
| TOP 5 PRODUCT FEATURES | 1. With stand 2. Auto trigger/auto reading function 3. Support multiple languages |
| DIMENSIONS | 67mm x 97mm x 165mm (L*W*H) |
| WEIGHT | 178g |
